型号	RPi Camera (H)
品牌	-
年份	16+
描述	, Fisheye Lens, Supports Night Vision SKU: RPi Camera (H)
规格书	点击查看

Select Version:

DESCRIPTION

Raspberry Pi Camera Module, Fisheye Lens, Wider Field of View, Supports Night Vision

Features

Raspberry Pi Camera, supports all revisions of the Pi
Fisheye Lens, offers wider field of view
Comes with infrared LED, supports night vision
5 megapixel OV5647 sensor
Camera specifications
- CCD size : 1/4inch
- Aperture (F) : 2.35
- Focal Length : adjustable
- Field of View : 160 degree (while other normal cameras are typically 72 degree)
  - Diagonal angle : 160 degree
  - Horizontal angle : 120 degree
- Sensor best resolution : 1080p
4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting infrared LED and/or fill flash LED
Dimension: 25mm x 24mm

Note: to use the camera with Raspberry Zero v1.3, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

Development resources:user manual, etc.
Download: www.waveshare.com/wiki/RPi_Camera_(H)

Partnumber	Pixels	Sensor	Adjustable-focus	Infrared Night Vision	Angle of View (degree)	Manufacturer	Dimensions (mm)	Recommendation¹
RPi Camera	5 Mega	OV5647	×	×	72.4	element14	25x24x9	★
RPi Camera V2	8 Mega	IMX219	×	×	73.8	element14	25x24x9	★★★☆
RPi NoIR Camera V2	8 Mega	IMX219	×	√	73.8	element14	25x24x9	★★★☆
RPi Camera (B)	5 Mega	OV5647	√	×	75.7	Waveshare	32x32	★★★
RPi Camera (C)	5 Mega	OV5647	×	×	72.4	-	25x24x9	★☆
RPi Camera (D)	5 Mega	OV5647	×	×	72.4	Waveshare	25x24x9	★★

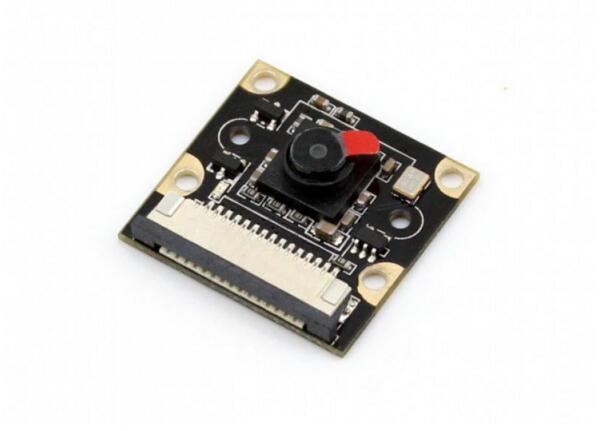

RPi Camera (E)	5 Mega	OV5647	×	√	72.4	Waveshare	25x24x6	★★
RPi Camera (F)	5 Mega	OV5647	√	√	75.7	Waveshare	25x24	★★★★

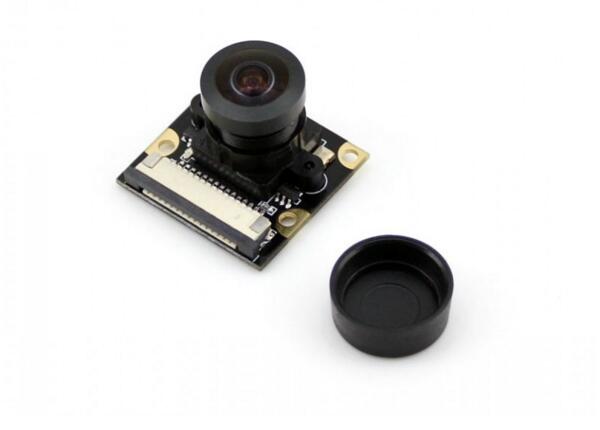

RPi Camera (G)	5 Mega	OV5647	√	×	160	Waveshare	25x24	★★★★
RPi Camera (H)	5 Mega	OV5647	√	√	160	Waveshare	25x24	★★★★

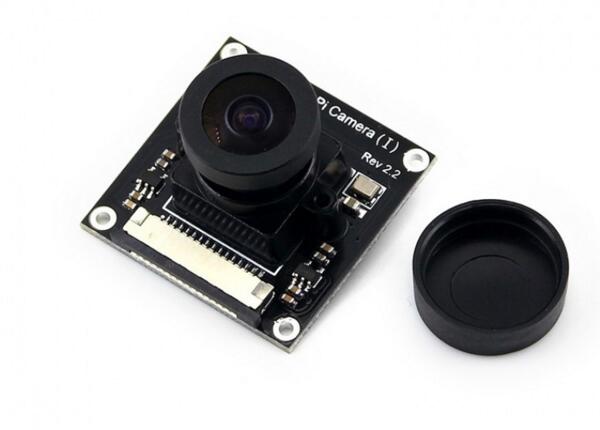

RPi Camera (I)	5 Mega	OV5647	√	×	170	Waveshare	32x32	★★★

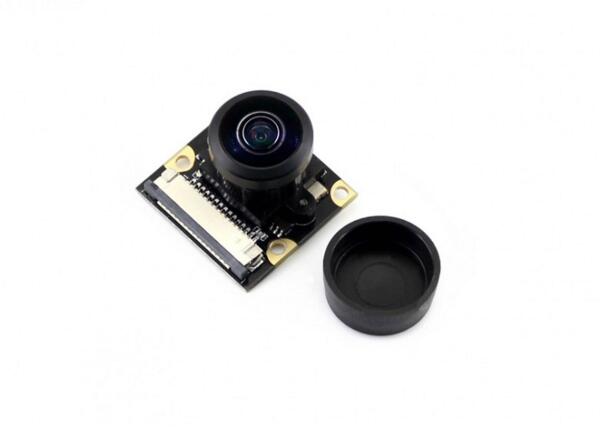

RPi Camera (J)	5 Mega	OV5647	√	×	222	Waveshare	25x24	★★★☆
RPi IR-CUT Camera ²	5 Mega	OV5647	√	√	75.7	Waveshare	31x32	★★★★
RPi Zero V1.3 Camera	5 Mega	OV5647	×	×	72.4	Waveshare	60x11.5x5	★★★

The recommendation is considered from sales report and cost performance.
While normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, the RPi IR-CUT Camera can take better pictures in correct color by daylight, and still features the ability to see in the dark.
